Best Retaining Wall Waterproofing: Products & Best Practice (2026)

A retaining wall does a different job than any other wall on your property. It holds back soil permanently, not just during a storm. That constant contact with wet ground is why waterproofing for retaining walls needs its own approach, separate from standard damp-proofing above ground. Get it wrong and you're looking at cracking, efflorescence, and eventually structural repairs. Get it right the first time, and the wall stays dry for decades.

This guide covers below grade waterproofing specifically for retaining walls. It looks at how it differs from above-grade damp control, which bituminous coatings and membranes suit which situation, and a step-by-step method you can hand to a contractor or follow yourself.

Why Retaining Walls Need Below Grade Waterproofing

An above-grade wall dries out between rain events. A retaining wall doesn't get that chance. One face sits permanently against saturated soil, so moisture is always pushing to find a way through. That's the core problem below grade waterproofing solves. It's also why retaining wall damp proofing needs a different product strategy than a simple exterior paint job.

Soil holds water long after rain stops, especially in clay-heavy or poorly drained sites. The wall behind that soil is under constant pressure, not occasional pressure. Without a proper barrier, water finds a way through the concrete over time.

How Hydrostatic Pressure Causes Damp and Cracking

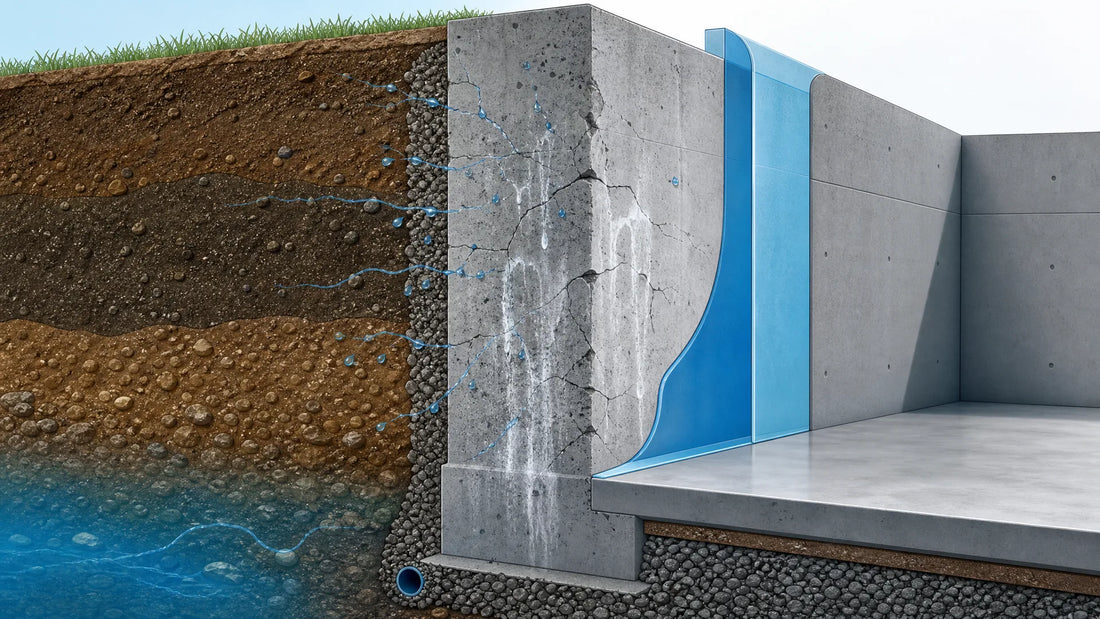

Hydrostatic pressure is what happens when water in saturated soil pushes against a solid surface with nowhere else to go. Behind an unwaterproofed retaining wall, that pressure builds after heavy rain. It forces moisture through the concrete itself.

A typical South African retaining wall failure follows a predictable pattern. Hydrostatic pressure builds behind the wall. Moisture pushes through the concrete. Then you see efflorescence, the white, powdery salt deposits, on the exposed face. Left untreated, that moisture cycle leads to spalling, where the concrete surface flakes and crumbles, and eventually structural cracking.

Retaining walls sit permanently in contact with saturated soil in a way above-grade walls never do. A single coat of paint-on waterproofing is rarely enough on its own. Most accredited systems specify a membrane, plus a protection or drainage layer, as the minimum standard for a wall in constant ground contact.

Bituminous Waterproof Coating vs Membrane Systems

Bituminous coatings and sheet membranes aren't rivals. They're usually part of the same system, each doing a different job. Understanding where each one fits helps you avoid over-specifying or under-specifying your retaining wall project.

A bituminous waterproof coating is applied wet, either brushed, rolled, or sprayed onto the concrete surface. It cures into a flexible, adhesive black membrane that follows every contour of the wall. A sheet membrane, by contrast, arrives as a manufactured roll. Workers lay it or adhere it onto the surface in strips, often overlapped and sealed at the joints.

When to Use a Bituminous Waterproof Coating

Bituminous coatings work well as the main waterproofing layer on rough or uneven concrete. The liquid application settles into small surface irregularities that a rigid sheet might bridge poorly. They're also a practical choice for detailing around pipe penetrations, corners, and other awkward shapes before the main membrane goes on.

Because they cure to a continuous, seamless film, bituminous coatings reduce the risk of pinhole leaks that can occur at membrane seams if those seams aren't properly sealed.

When a Sheet Membrane Is the Better Choice

A sheet membrane earns its place where you need consistent, factory-controlled thickness and predictable performance across a large wall face. Membranes also handle crack-isolation duties well. A flexible membrane can bridge small movement cracks in the concrete without tearing, something a thin coating may struggle with over time.

For new-build retaining walls poured with reinforcement and control joints, a membrane system laid over a primer coat is often the specified approach. For repair work on existing walls with uneven or damaged surfaces, a bituminous coating may go down first to level and seal, with a membrane added over the top for extra assurance.

Sika Waterproofing Membrane and Other Accredited Products for Retaining Walls

Pinnacle Construction Products is an authorised, certified distributor of Sika, ABE, Mapei, and Fuse waterproofing systems. Every product recommended here is genuine, manufacturer-backed stock, not a grey-import copy of unknown origin.

Sika Cemflex Membrane for Crack-Isolation on Concrete Walls

The Sika Cemflex crack-isolation membrane is a flexible, cement-based waterproofing product built for exactly this kind of work. It bridges hairline cracks in the concrete while resisting moisture across the wall face. It suits retaining walls where you want a cement-based system rather than a bitumen-based one, and contractors commonly use it as the main waterproof layer on new or repaired concrete surfaces. For a broader look at what's available from this manufacturer, the full range of genuine Sika waterproofing products covers systems beyond retaining walls too.

ABE Malthoid and ABE Waterproofing Membrane for Bituminous Protection

Bituminous membranes like the ABE Malthoid 2Ply bituminous membrane have been a below-grade waterproofing staple in Southern African construction for decades. They tolerate rough concrete surfaces and the imperfect site conditions common on retaining wall pours. That's part of why they've stayed a go-to choice for so long.

ABE also supplies a bituminous waterproofing membrane in various widths, suited to general slab, foundation, and wall protection where you need a durable moisture barrier across a broad surface. Between the two, you can generally match membrane width to the scale of the wall and the detailing required at joints and corners.

Sika Raintite and Alcolin Peel 'N Seal for Reinforcement and Detailing

Sika Raintite is a polyester reinforcement membrane, designed to work alongside acrylic waterproofing systems rather than as a standalone barrier. On a retaining wall, it's most useful for reinforcing a coating at stress points, adding strength and flexibility, and helping prevent the coating from cracking under movement.

The Alcolin Peel 'N Seal self-adhesive membrane fills a different gap. It's a self-adhesive membrane you peel and stick directly onto the surface, which makes it well-suited to detailing work: sealing around pipe penetrations, corners, and other spots where a wet-applied coating is fiddly to get right. It comes in several widths, so you can pick a size that matches the detail you're sealing.

For the exposed, above-grade cap of a retaining wall, the section that sits above soil level and faces the weather directly rather than constant ground moisture, Fuse Rubberised Waterproofing Paint is a flexible coating option worth considering. It's covered in more depth in the Fuse Rubberised Waterproofing Paint guide.

Step-by-Step: How to Waterproof a Retaining Wall

Getting the sequence right matters as much as picking the right product. Skip a step, or do it out of order, and you undermine even the best membrane.

Surface Preparation and Joint Treatment

Start by cleaning the wall face of loose material, dust, and any curing compound residue. Technical suppliers generally advise treating cold joints and construction joints as the highest-risk failure points on a retaining wall. Water finds the path of least resistance long before it works its way through solid concrete, so these joints need dedicated attention, not just a pass with the main coating.

Fill and seal any cracks before you waterproof over them. If the wall already has visible cracking, address that structurally first. The concrete crack repair products guide covers that step in more detail. Prime the surface if your chosen membrane calls for it.

Applying the Membrane or Coating

Apply your bituminous coating or membrane according to the manufacturer's instructions, working from the base of the wall upward. Pay close attention to overlaps on sheet membranes and make sure joints and corners get full coverage, not just the flat wall face.

Where you're using a self-adhesive product like Peel 'N Seal for detailing, apply it before or after the main coating depending on the manufacturer's sequence, and press it firmly to avoid trapped air. Let everything cure fully before moving to the next stage.

If you're pouring a new wall rather than treating an existing one, consider a waterproofing concrete additive mixed into the concrete itself. It's a belt-and-braces approach alongside surface waterproofing.

Backfilling and Protecting the Waterproofing Layer

Never backfill directly against a freshly waterproofed wall without protection. Stone, rubble, and compacting equipment can tear or puncture a membrane or coating before it's ever tested by water. Put in a protection board or a dedicated drainage layer, such as a gravel strip with a perforated pipe at the base, before the soil goes back.

That drainage layer also relieves hydrostatic pressure by giving water somewhere to go, rather than letting it pool against the wall. Waterproofing and drainage work together. One without the other leaves a gap in the system.

Basement Waterproofing in South Africa: Same Principles, Higher Stakes

Basement waterproofing in South Africa follows the same below-grade logic as retaining walls, since a basement wall also sits in permanent contact with soil. But a basement is a habitable, enclosed space, so the stakes are higher.

A retaining wall failure shows up as staining or cracking on an exposed exterior face. A basement failure means damp internal walls, damaged finishes, and potential mould growth in a space people actually use. That means basement projects usually add internal considerations on top of the external membrane: vapour-permeable internal finishes, adequate ventilation, and sometimes a secondary internal drainage system as a backup.

The core waterproofing choices, bituminous coating, membrane systems, crack-isolation products, carry across from retaining walls to basements. The difference is that a basement gives you far less room for error, because any breach affects a living or working space rather than just a garden wall.

Choosing the Right System for Your Project

The right system for your retaining wall depends on a few practical factors: your budget, how exposed the wall is to water and soil movement, and whether you're managing the job yourself or bringing in a contractor.

A straightforward garden retaining wall with good drainage might only need a bituminous coating plus a drainage layer. A larger structural wall holding back a slope, or one near a building foundation, generally justifies a full membrane system with reinforced detailing at joints and corners. DIY-friendly products like self-adhesive membranes suit smaller repair jobs. Larger new-build walls are usually better handled by a contractor working to a specified system.

Comparing the Options at a Glance

• Bituminous coating (ABE Waterproofing Membrane range, Fuse Rubberised Waterproofing Paint): good for uneven surfaces, detailing, and above-grade caps.
• Bituminous sheet membrane (ABE Malthoid 2Ply bituminous membrane): a proven, tolerant below-grade barrier for the main wall face.
• Cement-based membrane (Sika Cemflex crack-isolation membrane): ideal where crack-bridging on concrete is the priority.
• Reinforcement membrane (Sika Raintite): strengthens acrylic coatings at stress points.
• Self-adhesive membrane (Alcolin Peel 'N Seal self-adhesive membrane): best for joints, penetrations, and awkward detailing.

If your retaining wall project needs a system recommendation, or if you're not sure which combination suits your soil and exposure conditions, get in touch with Pinnacle's technical team. They can match a genuine, accredited product range to your specific wall. Or browse the below-grade waterproofing membranes and coatings directly and start the job with the right materials from day one.
