Chemical Anchor for Bolts Price in South Africa: 2026 Guide

Accurate budgeting for structural fixing means moving beyond generic unit rates. You need to understand how resin chemistry and hole geometry dictate the final bill. Search for a chemical anchor for bolts price in South Africa and you'll find vague ranges that ignore your site's actual substrate conditions and load requirements. Pricing isn't a flat rate per bolt. It's a calculated function of annular volume, resin type, and mandatory consumables, and all three belong in every quote.

Pinnacle Construction Products supplies genuine ABE and Soudal anchoring systems, with manufacturer-backed technical support behind the numbers, so pricing correlates with verified load data rather than guesswork. This guide breaks down the cost drivers for professional-grade systems so you can estimate project spend with confidence and avoid the false economy of under-specifying critical fixings.

Chemical Anchor Resin Price Factors in South Africa

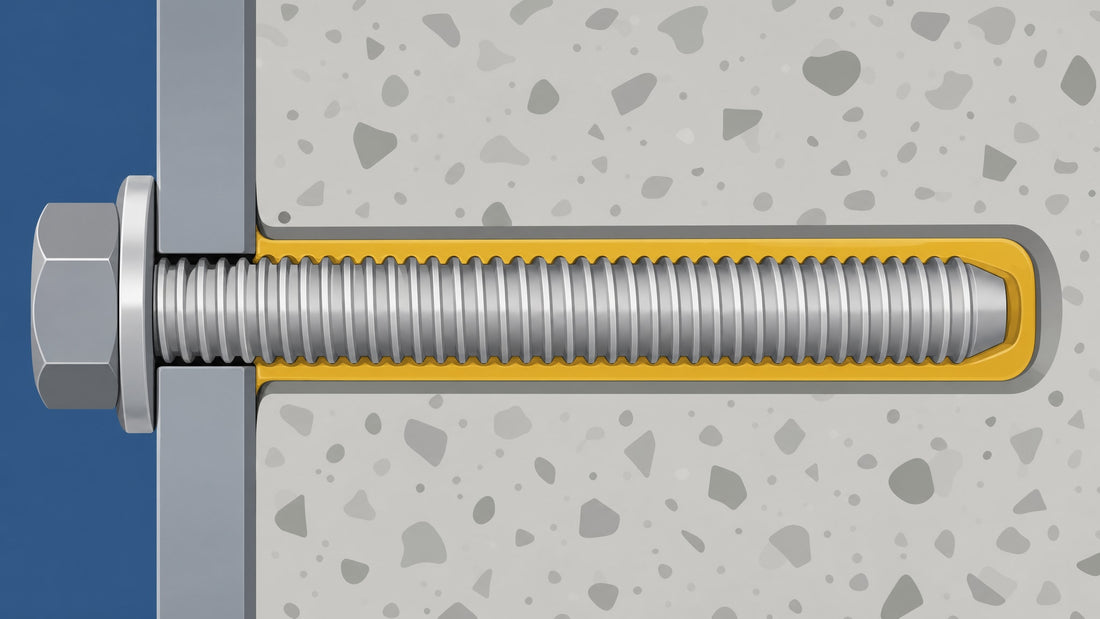

The single most significant variable in any bolt fixing chemical cost calculation is the annular volume between the steel stud and the concrete wall. A 16mm bolt in a 20mm hole uses far less resin than the same bolt in a 24mm hole. Yet many contractors estimate based on bolt diameter alone rather than actual drilled void space. Calculate the specific annular gap for each application, because oversized drilling (often the result of misaligned templates or debris) can double your resin consumption and invalidate the manufacturer's load certification.

Resin chemistry sets the second major price tier, separating standard vinylester systems from high-performance epoxies. A basic polyester or vinylester cartridge is an accessible entry point for non-critical fixtures. Structural applications demand epoxy formulations instead, and those carry higher raw material costs because of their stronger bond and better thermal stability. The chemical anchor resin price you pay reflects that performance ceiling: cheaper options trade away long-term load capacity and chemical resistance for a smaller invoice today.

Cartridge volume also moves the effective unit cost, since larger packs usually offer better value per litre on high-volume projects. But buying bulk only pays off if your team can use the product before it expires or cures in the nozzle during pauses. Match the package size to your daily installation rate, and you won't let wastage quietly inflate the true price per anchor point.

Epoxy Adhesive Costs for Structural Anchoring

Epoxy systems command a premium because they deliver certified structural performance that generic adhesives can't match. a.b.e.® Epidermix® 116 and Epidermix® 389 are primary examples: professional-grade epoxy systems where the price reflects certified structural performance, not generic adhesion. These products are built for environments where failure isn't an option, and their position at the top of the market is backed by testing and compliance documentation.

For smaller repair jobs or precision bonding, the a.b.e.® Epidermix® 116 2L pack gives you enough volume without committing to industrial quantities. This size suits maintenance teams addressing isolated structural defects, where opening a 5L kit would leave a lot of unused material curing in the container. The upfront cost is lower, which makes it worth it for targeted jobs even though the per-litre rate runs higher than bulk packaging.

Larger infrastructure projects benefit from the economies of scale in the a.b.e.® Epidermix® 116 5L format. Continuous anchoring runs on commercial sites burn through volume fast, and stepping up to the larger pack cuts both the frequency of changeovers and the cumulative material cost. Reserve this investment for applications where the design spec explicitly calls for epoxy-grade bond strength and long-term durability.

The a.b.e.® Epidermix® 389 5L variant addresses specialized repair scenarios that need different viscosity or cure characteristics. Its price sits above standard anchoring resins because it targets structural challenges where standard formulations fall short. Choosing it over a cheaper alternative is a deliberate engineering decision: you're prioritizing permanent integrity over saving money on materials up front.

Vinylester Resin Anchor Cost and Application Value

Vinylester resin anchor cost sits in the middle ground between basic polyesters and premium epoxies, and it delivers reliable performance for general construction fixing. This chemistry cures faster than epoxy, which lets you push higher installation throughput on residential and commercial sites where schedule pressure outweighs the need for extreme chemical resistance. For standard rebar connections, balustrade posts, and light steelwork, vinylester gives you adequate safety margins at a fraction of the epoxy price.

This resin type doesn't replace epoxy in aggressive chemical environments or high-temperature zones, though. Use vinylester where the spec demands epoxy-grade resistance and you'll get premature bond degradation no matter how well you prepped the hole. The cost saving is real only when the application genuinely matches the material's performance envelope.

Contractors often pick vinylester for high-volume anchor points, where the savings add up across hundreds of fixes. The faster cure time also cuts labor hours per installation, compounding the material cost advantage into overall project efficiency. Deploy this system for its intended purpose, not beyond its technical limits, and you get the best return.

Essential Accessories: Static Mixer Nozzle Pricing

Static mixer nozzles are non-negotiable consumables, and they directly determine whether your expensive resin performs as designed. Soudal Static Mixer nozzles are sold in 5-packs, which sets a fixed consumable cost unit you need to multiply by the number of cartridge changes in any project estimate. Each nozzle makes sure the two-component resin mixes in the correct ratio before it enters the hole. Reuse one and you risk incomplete curing that compromises the entire anchor.

Skipping fresh nozzles to save money is one of the most common causes of anchoring failure on site. Partially cured resin creates a weak bond that may pass initial pull tests but fails under sustained load or thermal cycling. The Soudal Static Mixer 5 Pack is a minor line item protecting a far larger investment in resin and labor.

Budgeting for these consumables takes some honesty about your workflow interruptions. Every time the gun stops dispensing long enough for resin to skin inside the nozzle, that mixer is spent and needs replacing. Underestimate this consumption rate and you'll hit mid-project shortages that either halt work or tempt crews to reuse compromised nozzles.

Comparing Chemical Anchors to Cementitious Grout Prices

Cementitious grouts and chemical anchors solve fundamentally different problems despite occasional overlap in marketing language. ABE Duragrout GP Dustless costs around ZAR 182.79 per 25kg bag, which shows the gap between bulk cementitious fillers and precision chemical anchors. Grout is priced by weight for compressive support under baseplates and machinery. Chemical anchors are priced per point for tensile loads in vertical or overhead applications.

Substituting grout for a chemical anchor in a tensile application is structurally dangerous, whatever you save on cost. Grout lacks the adhesive bond strength to resist pull-out forces and will fail catastrophically where a resin system would hold. Using chemical anchor resin to fill large voids under a baseplate is just as reckless the other way, when a purpose-designed grout achieves the required bearing capacity for pennies per litre.

Check our non-shrink grout price guide when you're evaluating bulk filling solutions separately from point anchoring. Getting this distinction right prevents costly specification errors, the kind that either overspend on the wrong material or risk structural failure through substitution. The right product at the right price depends entirely on correctly identifying the load path.

Calculating Total Bolt Fixing Chemical Costs per Project

Total project spend combines resin cartridges, mixer nozzles, surface preparation materials, and the labor to install them correctly. Estimate it by multiplying the annular volume per hole by the total anchor count, then add a waste factor for nozzle changes, test holes, and inevitable spillage. Professional estimators typically add 10-15% to theoretical resin volumes to account for site realities without running dangerously short.

Surface preparation costs get overlooked a lot in bolt fixing chemical budgets. Diamond grinding, wire brushing, and compressed air cleaning take time and consumables, and that needs to be in the per-anchor cost. Skip these steps and you save money upfront, but you guarantee reduced bond strength, and that often means expensive remedial work later.

Genuine stock from authorized distributors prevents price distortion caused by counterfeit or expired products. Grey-market resins may look cheaper but often lack proper storage history, which means the catalyst could already be degraded before you open the cartridge. Paying full price for verified product with intact shelf life is always cheaper than re-drilling and re-anchoring failed installations.

For detailed selection criteria beyond pricing, see our guide on anchoring chemical for bolts in concrete. Proper product selection means you're not overpaying for unnecessary performance, or under-specifying critical connections. Technical alignment between application and material is the foundation of accurate costing.

Securing Genuine Chemical Anchor Stock in SA

Counterfeit and improperly stored anchoring resins carry financial and safety risks that outweigh any nominal price saving. Expired or heat-damaged catalysts produce inconsistent cure profiles, and those can pass visual inspection but fail under load testing. As a certified chemical anchor bolts supplier, Pinnacle Construction Products states that it maintains chain-of-custody protocols meant to protect product integrity from factory to site.

Verify batch authenticity and review current technical data sheets before you buy, and you'll get material that matches the tested performance data. Manufacturer specifications assume genuine product stored within recommended temperature ranges throughout its supply journey. Deviate from that controlled environment and you create liability gaps no amount of installation skill can overcome.

When you're specifying epoxy adhesive for concrete repair or anchoring systems, insist on documentation that traces the product back to authorized manufacturing batches. This verification step takes minutes but can save you weeks of diagnostic troubleshooting when bonds fail unexpectedly. Permanent structural integrity starts with trusting your supply chain as much as your installation technique.

Request a formal quote from our technical team to receive project-specific pricing based on verified stock and current manufacturer data. Our specialists can confirm product suitability for your exact substrate and load conditions before you commit to purchasing.

Frequently Asked Questions

What drives the price difference between epoxy and vinylester chemical anchors?

Epoxy resins use more expensive raw materials and undergo stricter certification testing to achieve higher bond strengths and chemical resistance ratings. Vinylester offers adequate performance for general fixing at a lower cost but cannot match epoxy's load capacity in critical structural or aggressive environments. The price gap reflects this performance differential rather than arbitrary brand positioning.

How do static mixer nozzle costs impact the overall budget for bolt fixing?

Each cartridge change requires a fresh nozzle to ensure proper mixing ratios, making them a recurring consumable cost proportional to installation volume. Underestimating nozzle consumption leads to either work stoppages or the temptation to reuse partially clogged mixers, which causes incomplete curing and bond failure. Budget for one nozzle per cartridge plus additional units for workflow interruptions.

When should a contractor choose cementitious grout over a chemical anchor based on cost?

Use cementitious grout for compressive bearing under baseplates and machinery where tensile pull-out resistance is not required. Chemical anchors are necessary for vertical or overhead fixings subject to tensile loads, regardless of grout's lower per-kilogram price. Substituting grout for tensile applications creates structural risk that no cost saving can justify.

Why is it financially risky to use non-genuine or expired anchoring resin?

Degraded catalysts in expired or improperly stored resin produce inconsistent cure profiles that may appear sound visually but fail under sustained load. Remedial costs for re-drilling, re-anchoring, and potential structural damage far exceed the savings from discounted grey-market product. Verified genuine stock with intact shelf life eliminates this hidden liability.
